You are viewing NGS-3140-CTZ01
NGS-3140-CTZ01
7915

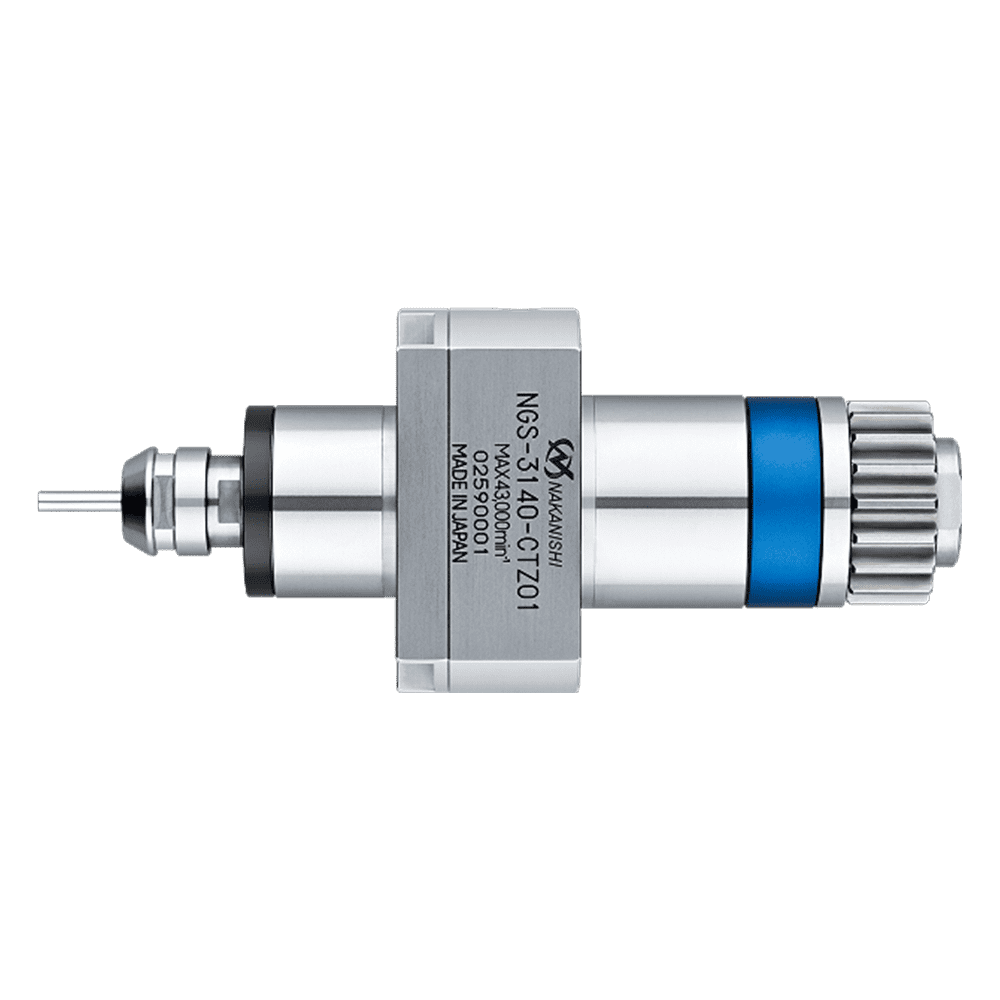

Speed-Increasing Spindle for Citizen Swiss Lathes
Product information
Description
Additional details
Features
- Replacing standard rotary tools with high-speed alternatives
The rotational speed can be boosted by 4.3 times using the machine tool's power. It maximizes the machining range of CNC automatic lathes. - Easy-to-mount
Can be mounted onto the existing tool post where rotary tools are attached. Installation is simple as wiring for cords and hoses is not necessary. - Supports φ6.35 tools
Tools with a shank diameter up to φ6.35 can be fitted.
Specs
Type
Spindle
Outer Diameter
φ31 mm
Allowable rotational speed
Machine command speed 10,000 min-1: 43,000 min-1
Spindle accuracy
within 1 μm
Net weight
582 g
Standard equipment and accessories
Collet nut (K-265)
Wrench (12 × 14): 2 pcs.
Hexagon socket bolt (M5 x 30): 4 pcs.
Grease dispenser
Grease nipple
*Collet is sold separately.
Wrench (12 × 14): 2 pcs.
Hexagon socket bolt (M5 x 30): 4 pcs.
Grease dispenser
Grease nipple
*Collet is sold separately.
Replaceable rotary tool
GSC1310 (manufactured by Citizen Machinery Co., Ltd.)
Applicable CNC Lathes
A20, D25, L20, L32, M32, etc.
Options
Collet (CHK Group): ø0.5–ø6.35 mm
