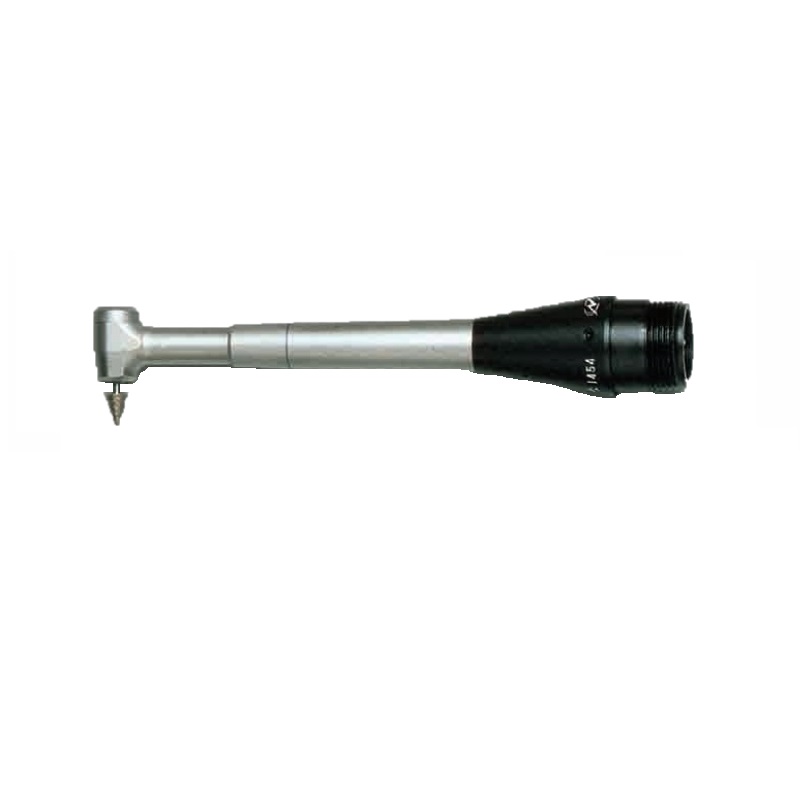

ROTUS
ULTRA-PRECISION HIGH TORQUE AIR GRINDER
Air Driven 30,000 min-1 (rpm)
Series Description
The ROTUS system is a hand-held grinder with an energy saving air motor. Since it is an air driven system, there is virtually no heat generation resulting in excellent durability. Select from a variety of attachments depending on the application.
Additional details
Features
- High torque air motor assembled with special vane mechanism
- Two types of air motors can be selected depending on the application
- 1/4 and 1/15 speed reducers (RG-01, RG-02) can be connected
Specifications
| Model | ROTUS |
|---|---|
| Speed | Max. 30,000 min-1(rpm) (56PSI) |
| Proper Air Pressure | 42-63PSI |
| Air Consumption | 2.65CFM |
| Output Power | 46W (motor) |
| Max. Torque | 6.6 cN · m (56PSI) |
| Motor | Air motor IM-301 |
| Dimensions | Air motor (IM-301) + Attachment (IR-310) |
| Weight | Air motor (IM-301) + Attachment (IR310): 6.63 oz. |
