HTS

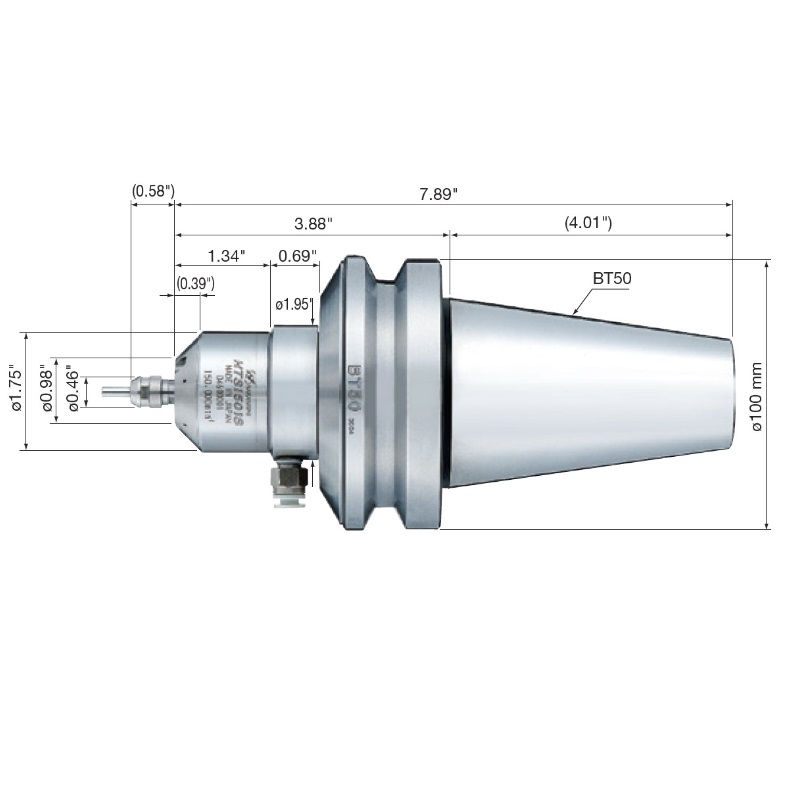

ULTRA HIGH-SPEED AIR TURBINE SPINDLES
Straight/BT/HSK, 150,000 Max RPM
Series Description
The HTS Series ultra high-speed spindle is suitable for cutting tool diameters of less than 0.5 mm. It has negligible spindle expansions. The air turbine mechanism has extremely low heat generation. Cutting tool depth of cut is up to R x 0.1 mm. Very high feed rates are also possible. Highly stable milling conditions can be achieved even with very small diameter cutting tools.
Additional details
Specifications
| Series | HTS |
|---|---|
| Speed | 150,000min-1(rpm) |
| Max. Output Power | 25W |
| Air Type | Side Air Supply Type |
| Shank | Straight, BT30/ 40/ 50; HSK E25/ 32/ 40/ 50/ A63/ F63 |
| Proper Air Pressure | 42~71 PSI |
| Air Consumption | 3.18CFM |
| Spindle Accuracy | Within 1 μm |
| Hose Diameter (Air intake) | ø6 mm (O.D.) |
| Standard Size Collet(CHA-4.0) | ø4.0 mm |
| (Optional) Collet (CHA-) | ø0.5 mm~ø4.0 mm |
